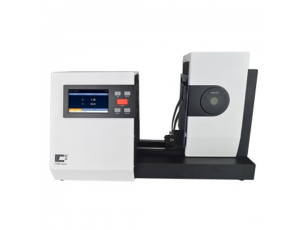

Clarity and Haze Meter CS-720

Products

Clarity and Haze Meter CS-720

  • LOGIN FOR MORE INFO
0
  • Used for clarity, color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel, touch screen and others.
  • Can measure dozens of color parameters such as Lab, yellowness index, whiteness index, Gardner, Pt-Co / APHA / Hazen colors.
  • Conform to ASTM D1003 / D1044, ISO13468 / ISO14782, JIS K7105, JIS K7361, JIS K7163 and other international standards.
  • Provides A, C and D65 measurement light source selection, and 24 types of measurement light source for color measurement.

Share

Product Description

  • It is designed for clarity, color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen,etc.
1. Different measurement parameters and professional clarity measurement function
  • The clarity and haze meter CS-720 can not only measure haze, transmittance, and transmission color, but also provides professional clarity measurement function, suitable for applications in high-definition films, display glass and other fields.

5. Compensation Measurement to Make Test Results More Accurate

  • It can realize the compensation measurement of transmittance and provide more accurate transmittance test results.

6. Haze QC software as Standard Accessory

  • Provide powerful haze, color, and transmittance measurement and analysis software, which can operate on a computer to generate and print test report
Type Color and Haze Meter CS-720
Light Source CIE-A,CIE-C,CIE-D65
Chromaticity Value: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,
U30,DLF,NBF,TL83,TL84
Standards

ASTM D1003/D1044,ISO13468/ISO14782

CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,
JIS Z8722 Condition c standard
Parameters HAZE,Transmittance(T)
CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,
JIS Z8722 Condition c standard
Whiteness Index (ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby)
Yellowness Index (ASTM D1925,ASTM E313-00,ASTM E313-73)
Tint(ASTM E313-00), Metamerism Index, Milm
APHA,Pt-Co,Gardner,Color Difference(ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,
ΔE*00)
Spectral Response CIE Luminosity function y
Wavelength 400-700nm
Wavelength Interval 10nm
Geometry 0/d
Measurement Area/Sample Port 16.5mm/21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤150mm
Display 5 inch TFT LCD screen
Working Temperature 10-40 ℃
Size (LxWxH) 598mm X 247mm X 366mm
Standard Accessory PC software (Color QC)
